High quality and high efficiency mono solar cell from Taiwan



Product Description

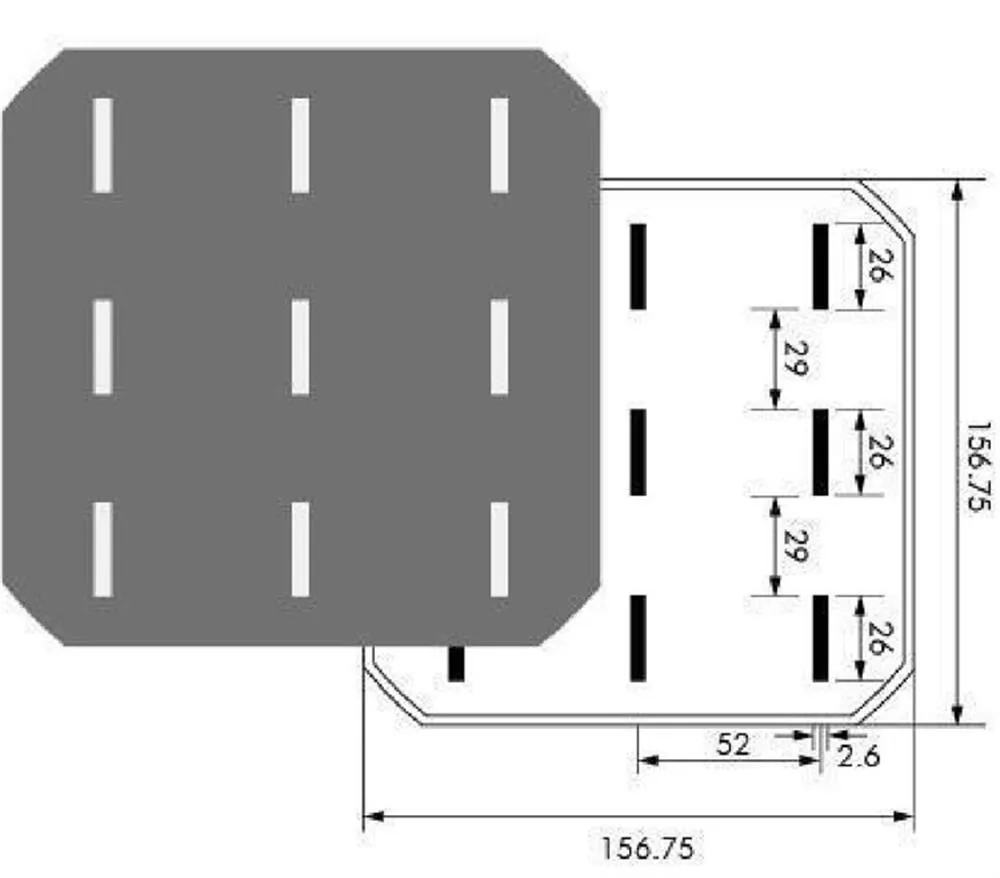

 Physical Characteristics



Item Monocrystalline Solar Cell 156X156
MaterialMonocrystalline
Dimension156mmx156mm±0.25mm
Diagonal205mm±0.25mm(round chamfers)
Thickness(Si)

200±20 μm/180±20μm

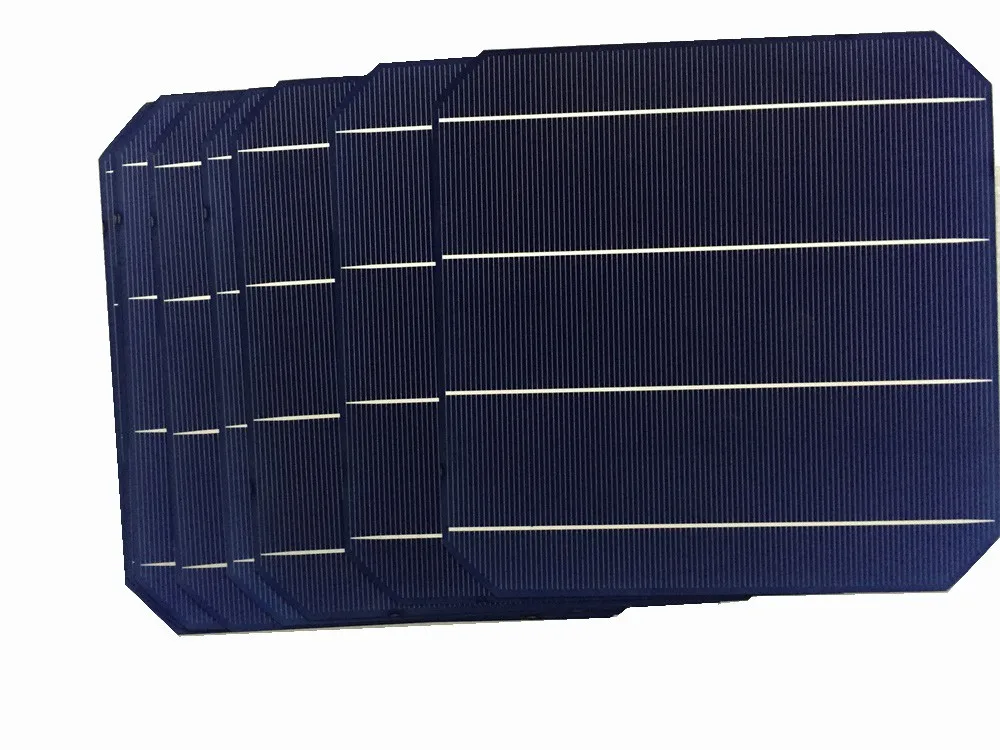

Front(-)

Blue anti-reflecting coating (silicon nitride)

1.5mm wide bus bars

Distance between bus bars: 52mm

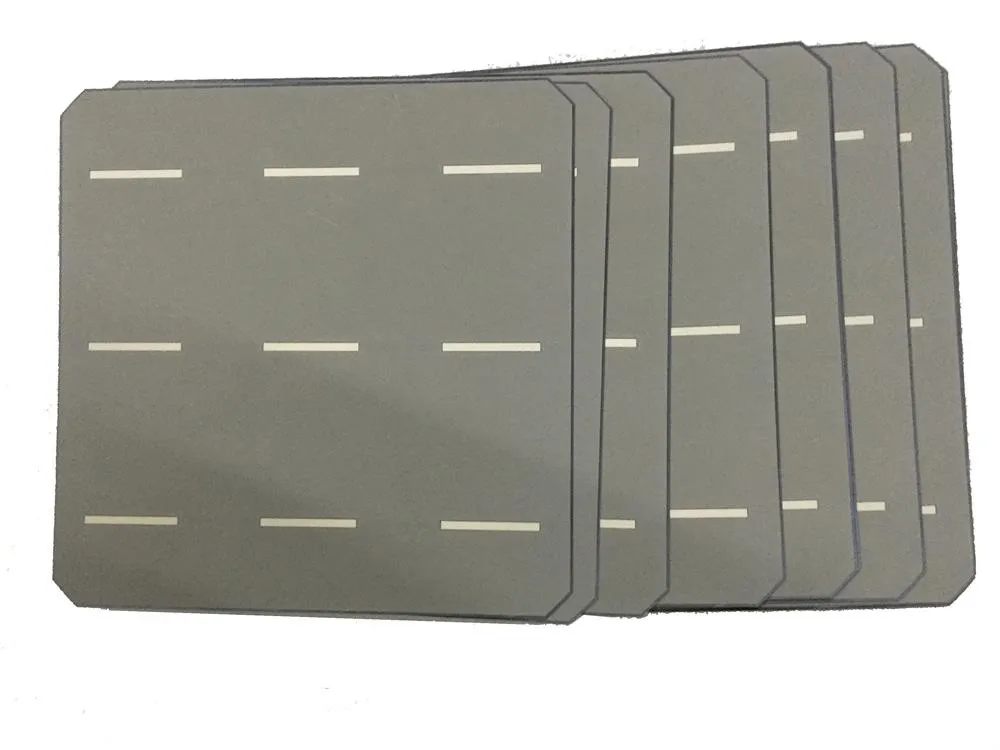

Back(+)

Aluminum back surface field

2.6mm wide soldering pads

Distance between bus bars: 52mm

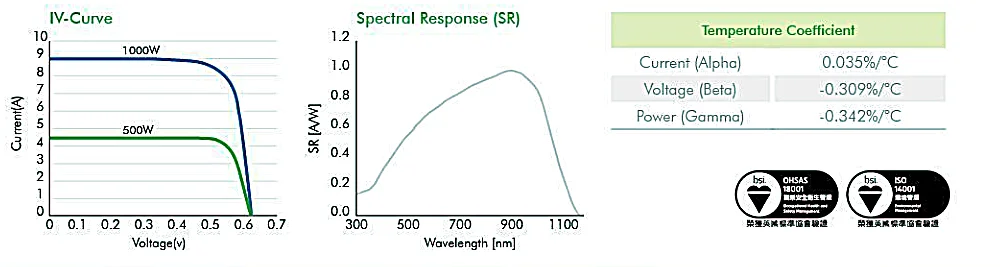

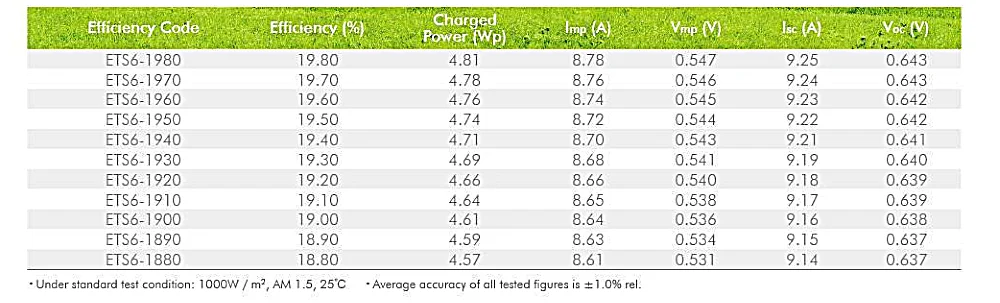

 Electrical Characteristics











 Solar Cell Show
