THS-M10

Toupdate:2016-08-05

Immediately consult

Service support

分享至:





Technical Date :





price per watt solar panel





ITEM NO









10W/18V

MONO or POLY

POLY

Maximum power (Wp)

10

Maximum power voltage (V)

18

Maximum power current (A)

5.56

Open circuit voltage (V)

  21

Short circuit current (A)

6

Number of cells (Pcs)

              36

Size of module (mm)

                                                                                                  270*350*25

Brand Name of Solar Cells

THS

Maximum system voltage (V)

               1000

Temperature coefficients of Isc (%)

0.065+/-0.015%/°C

Temperature coefficients of Voc (%)

-(2.23+/-0.1)mv/ °C

Temperature coefficients of Pm (%)

-(0.5+-0.05)/ °C

Temperature coefficients of Im (%)

+0.1/ °C

Temperature coefficients of Vm (%)

-0.38/ °C

Temperature Range

-40°C~+85°C

Tolerance Wattage (e.g. +/-3%)

              +/-3%

Surface Maximum Load Capacity

          60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Weight per piece (kg)

2.3

Length of Cables (mm)

               900

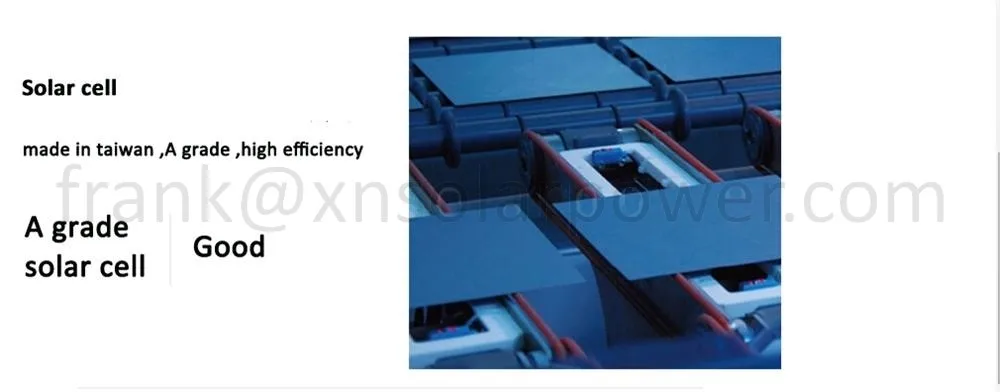

Cell Efficiency (%)

              more than 15.2%

Module Efficiency (%)

             more than 14%

Output tolerance (%)

               +/-3%

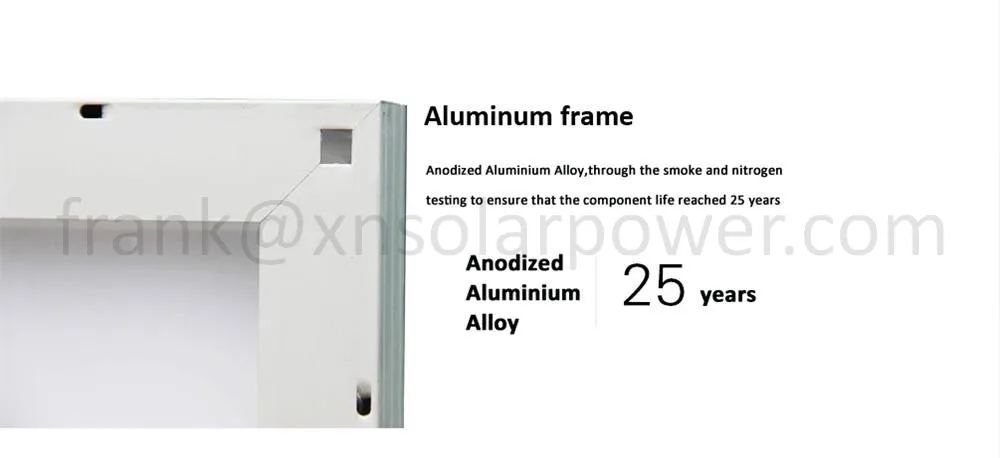

Frame (Material, Corners, etc.

               Aluminum

Standard Test Conditions

AM1.5  100mW/cm2  25’C

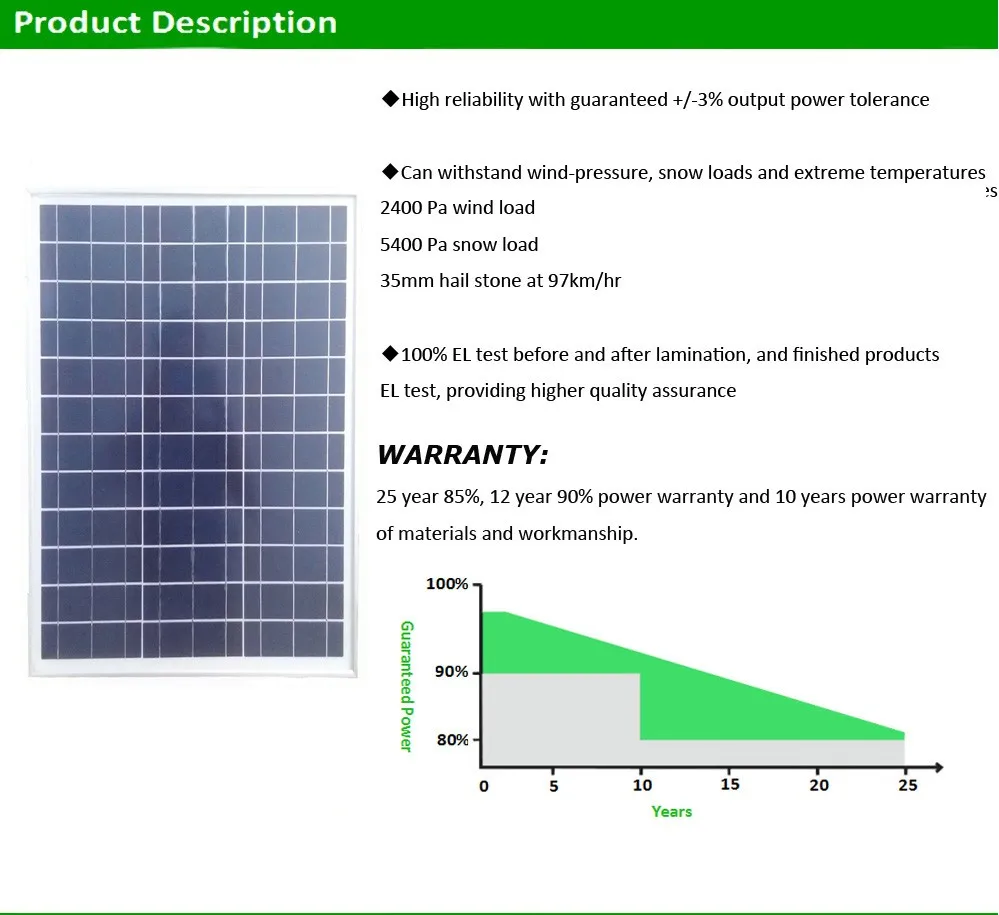

Warranty

2 years product warranty and 25 years 80% of power

FF (%)

69%

Packing

1PC/CARTON BOX

Unit Price

 USD  /PC

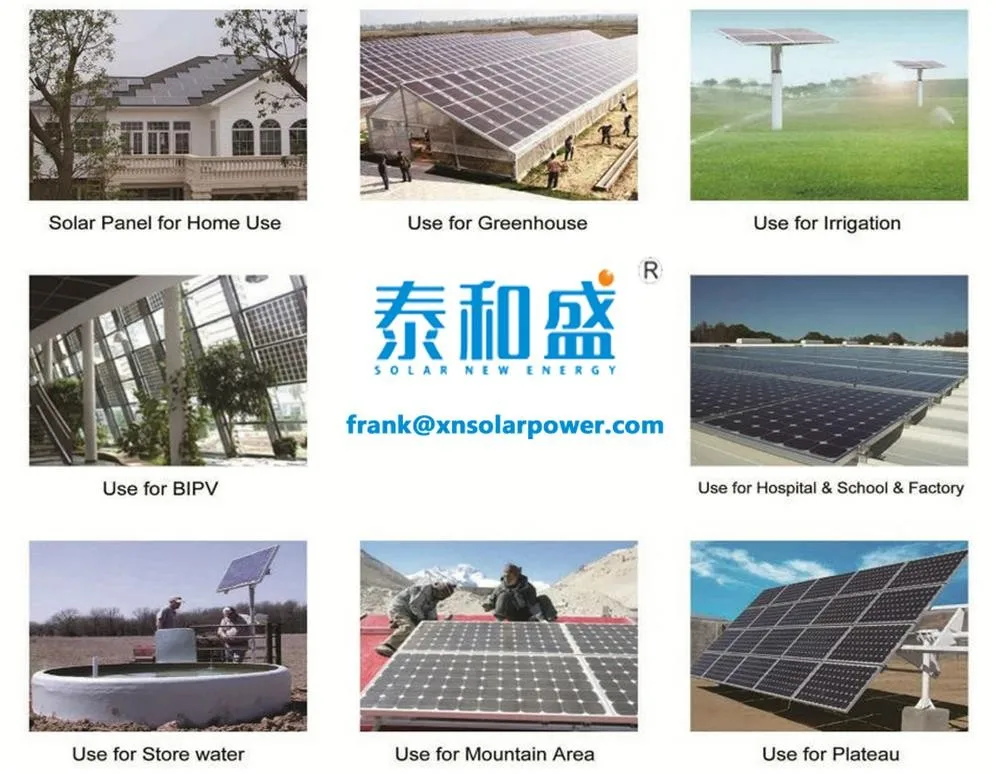

Application:

Certificate :

Packaging & Shipping
