125*125mm 5*5 inch type mono solar cell

Toupdate:2016-09-14

Immediately consult

Service support

分享至:

  125*125mm  5*5 type mono solar cell



Product Description



*Data under standard testing conditional (STC):1,000w/m2,AM1.5, 25°C , Pmax: Positive power tolerance.

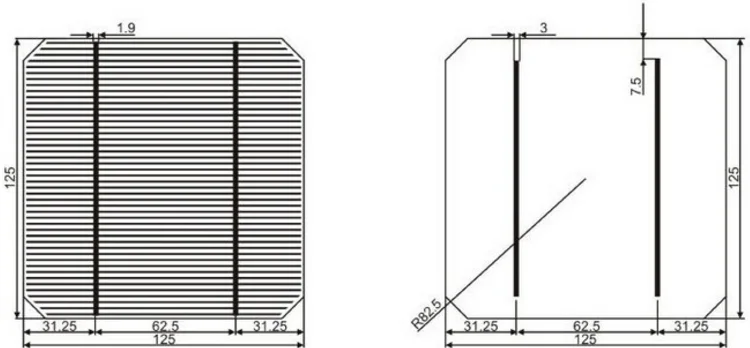

Dimension 125*125mm±0.5mm
Diagonal  165mm±0.5mm(round chamfers)
 Thickness 180 μm ± 20 ± μm
 Front Blue silicon nitride anti-reflection coating,1.5mm silver busbar
 Back Full-surface aluminum back-surface field 2.5 mm wide soldering pads (silver)
 Efficiency High conversion efficiency resulting in superior power and output performance
Tempearture Coefficients
TkVoltage  – 0.241%/K
TkCurrent         + 0.33%/K
TkPower        – 0.37%/K
 Working conditions Outstanding power output even in low light and high temperature condition
 FeaturesLong-term stability, reliability and performance
 Cetificate ISO9001,ISO14001 and OHSAS 18001 certified.
